Overview
This guide explains how to use the sub-clipping integration between FLICS and iconik.
The process involves several critical steps that need to be followed in a specific order to successfully transcode sub-clips in iconik.
User Experience
iconik Login
Log in to your iconik account at app.iconik.io.
Start a sub-clip transcode job

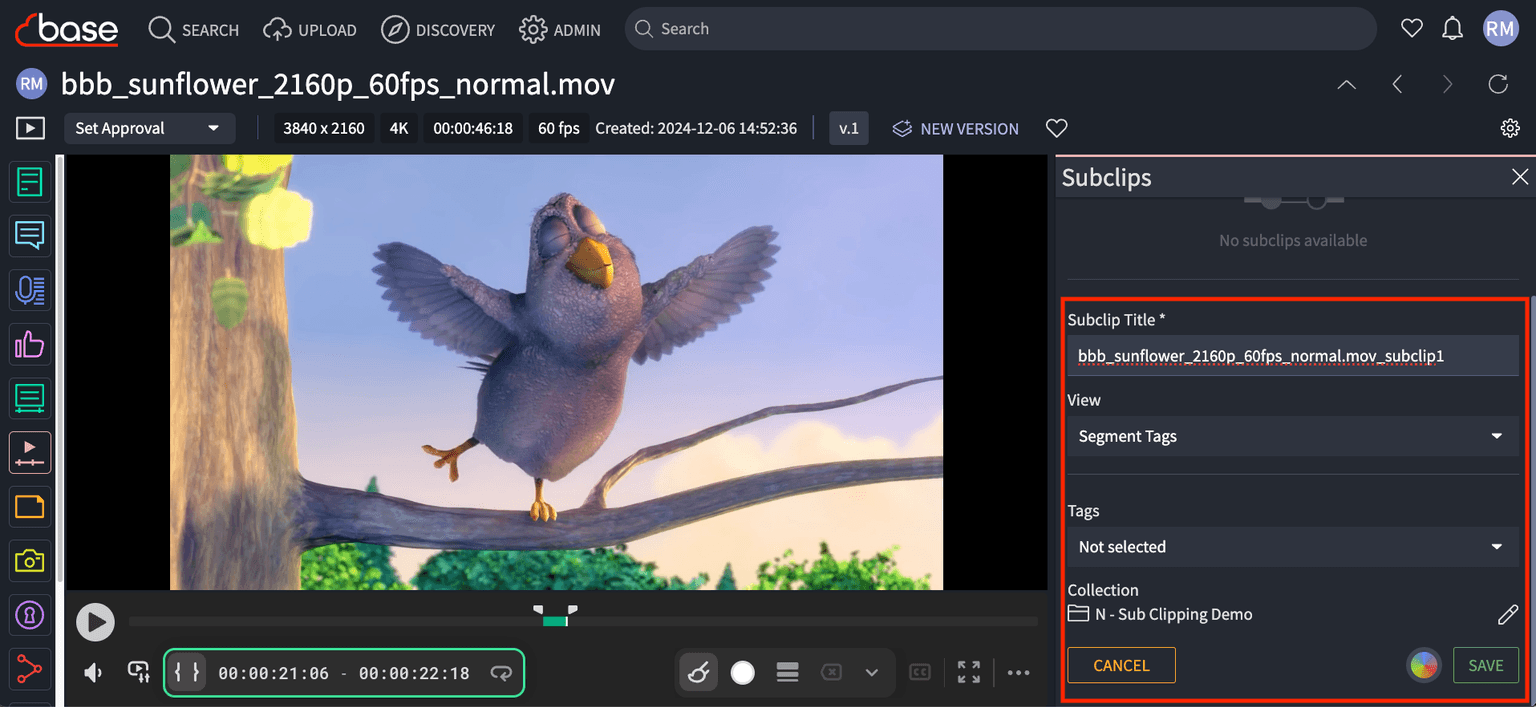

Navigate to your asset. Select 'Subclips' down the left hand side, mark an in and out point, name your sub-clip and hit 'Save':
This will automatically trigger a transcode of this sub-clip in FLICS.
A transcode can only be triggered once in a 5 minute period on the same asset. If you need to trigger it again, you must wait 5 minutes.
Job completion

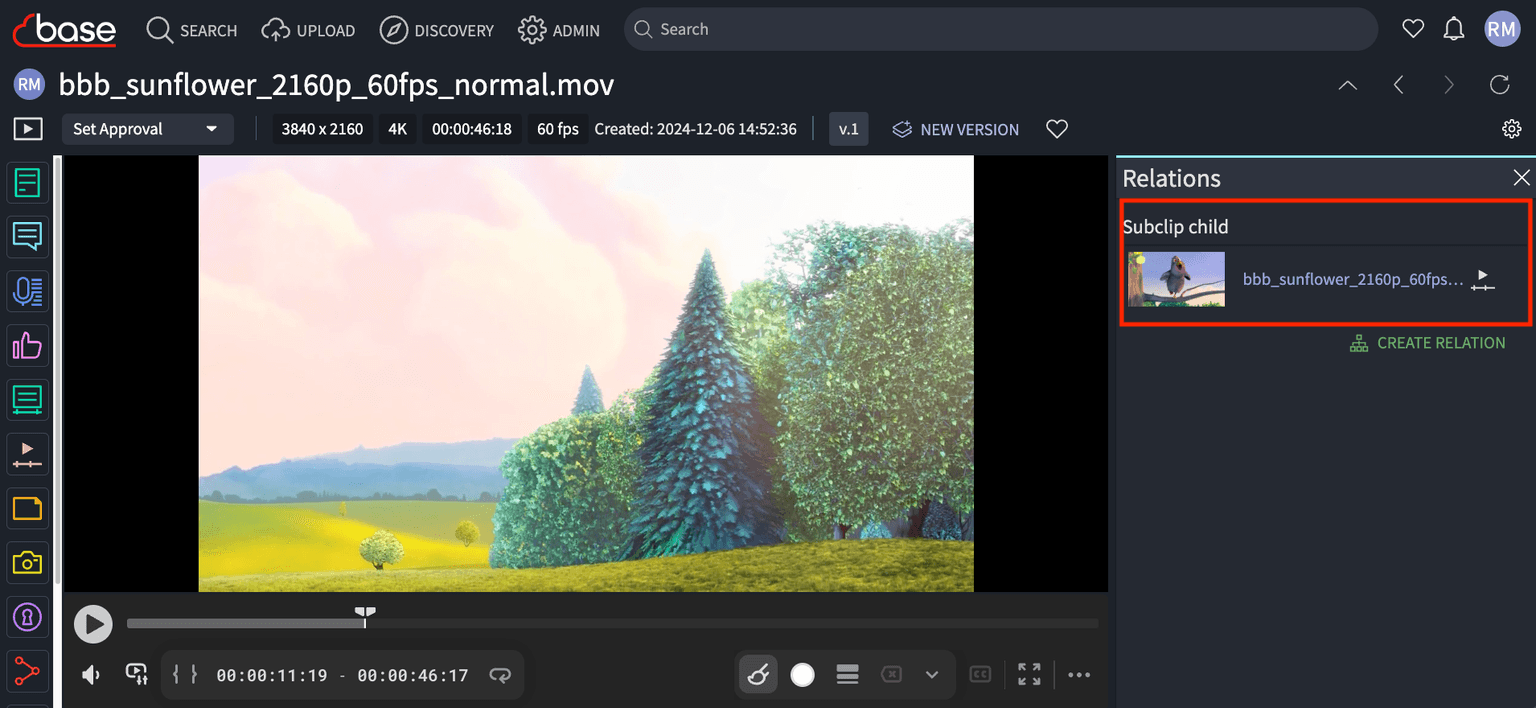

Once the job is complete, clicking on 'Relations' on the original asset will show that a sub-clip child has been created:
 |
|---|
| Image 1 - A sub-clip asset is created which is linked to the original asset |
Clicking on the sub-clip child will show you the sub-clip asset along with the transcoded files:
 |
|---|
| Image 2 - The new sub-clip containing a mezzanine and proxy file |

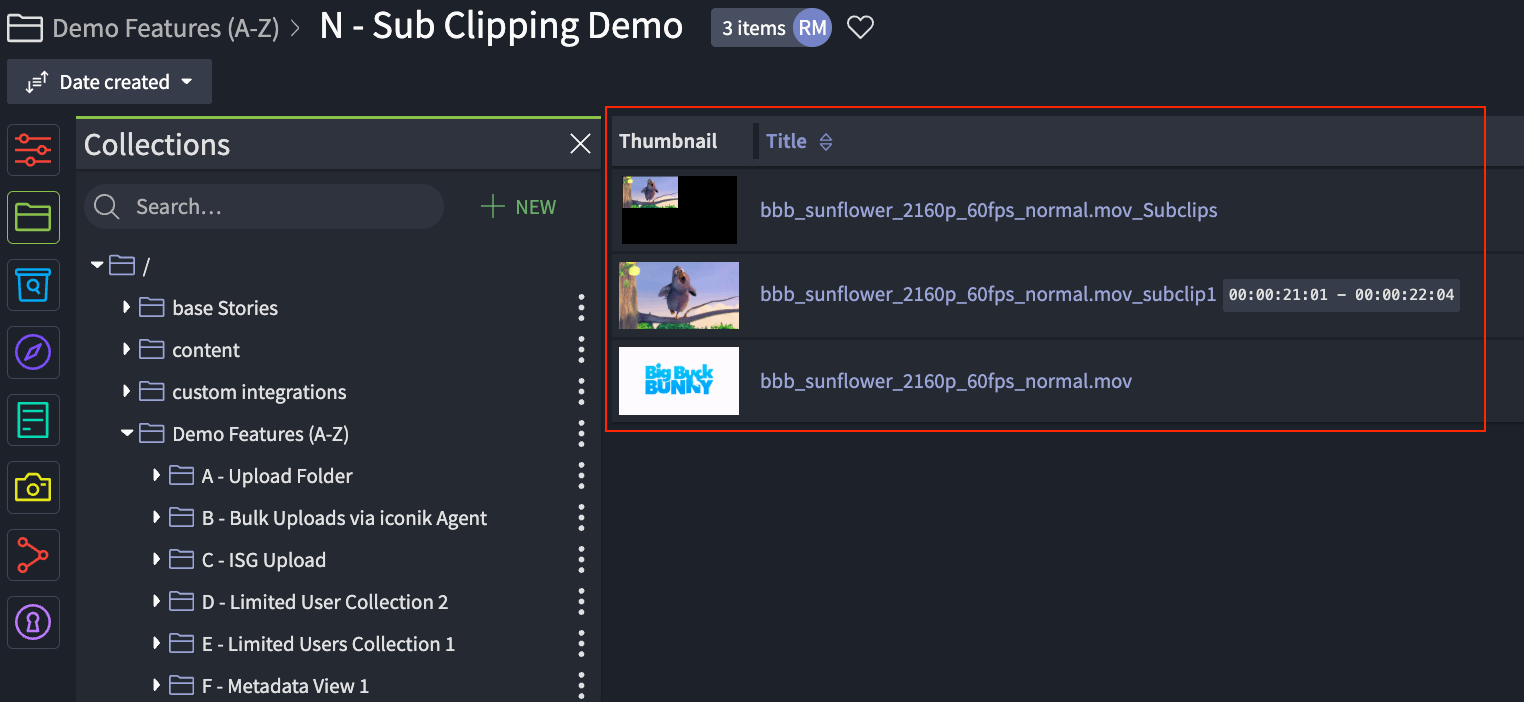

A collection will be created next to the original asset, with the suffix '_Subclips'. This will contain all the sub-clips that have been created for that asset:
 |
|---|
| Image 3 - A collection is created containing the sub-clips for that asset |

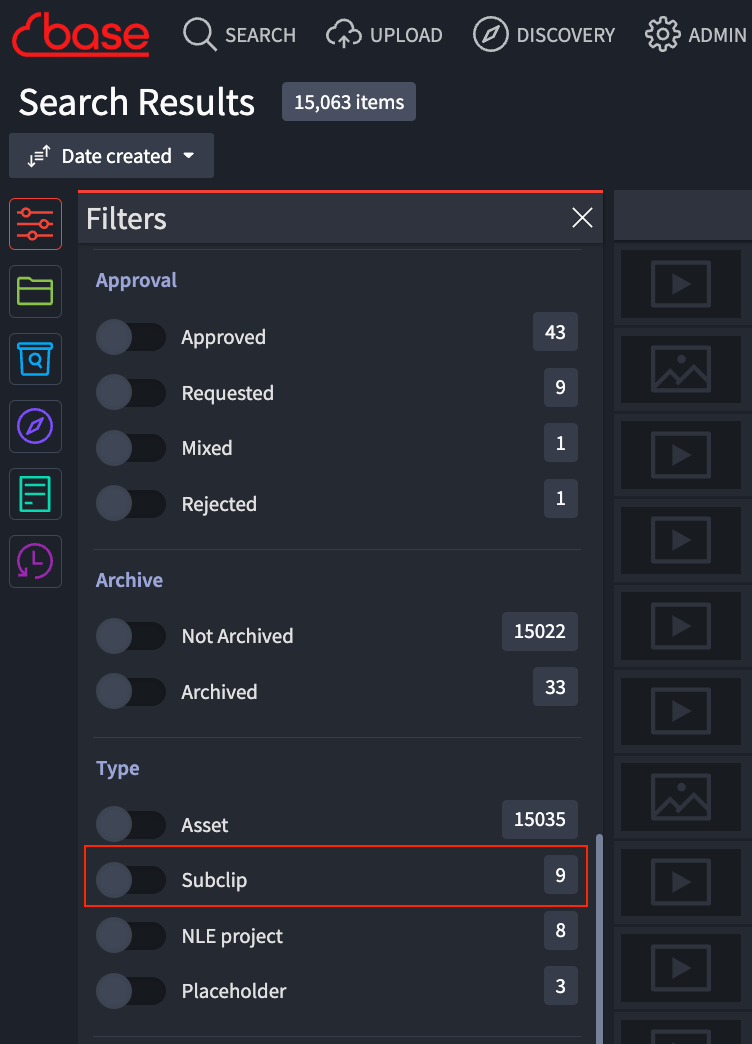

Sub-clips are a particular type of asset, and can be filtered by type 'Subclip' when searching:
 |
|---|
| Image 4 - You can search for sub-clip assets in iconik |
Job Monitoring
Job in progress

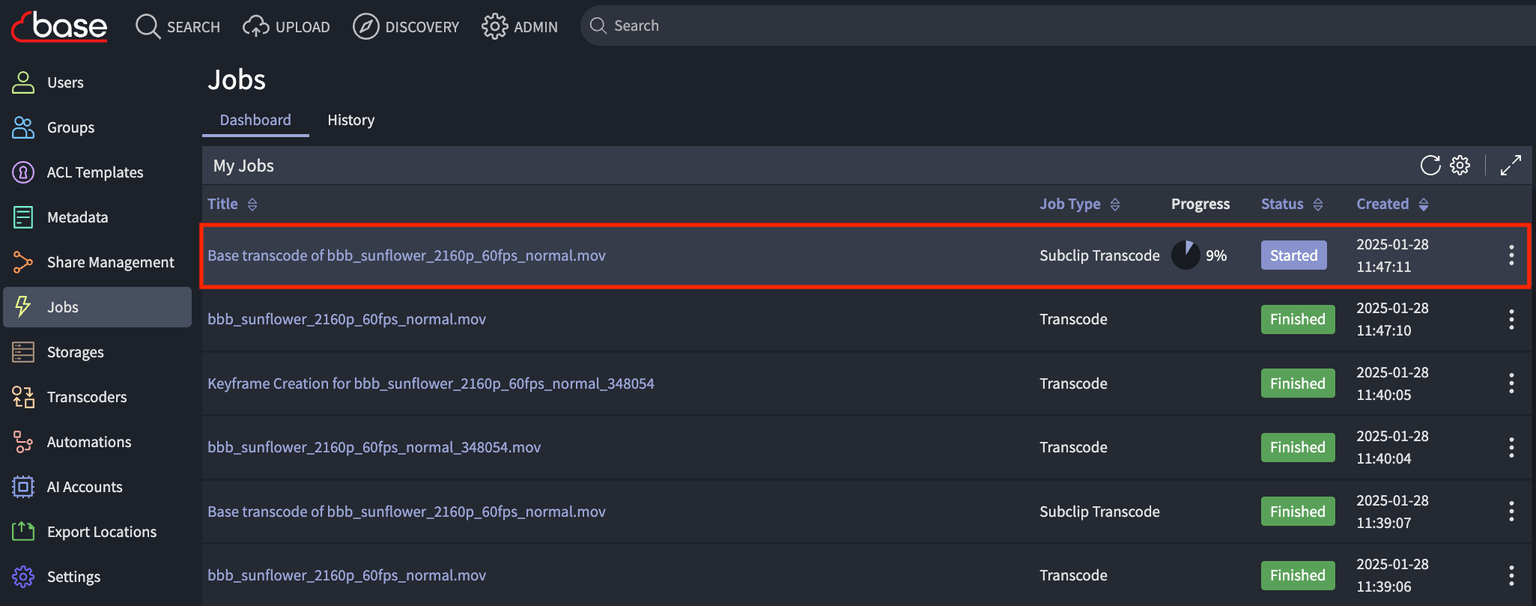

Under the jobs section in iconik, you can monitor the progress of the job. The job type will be 'Subclip Transcode':
Job failure

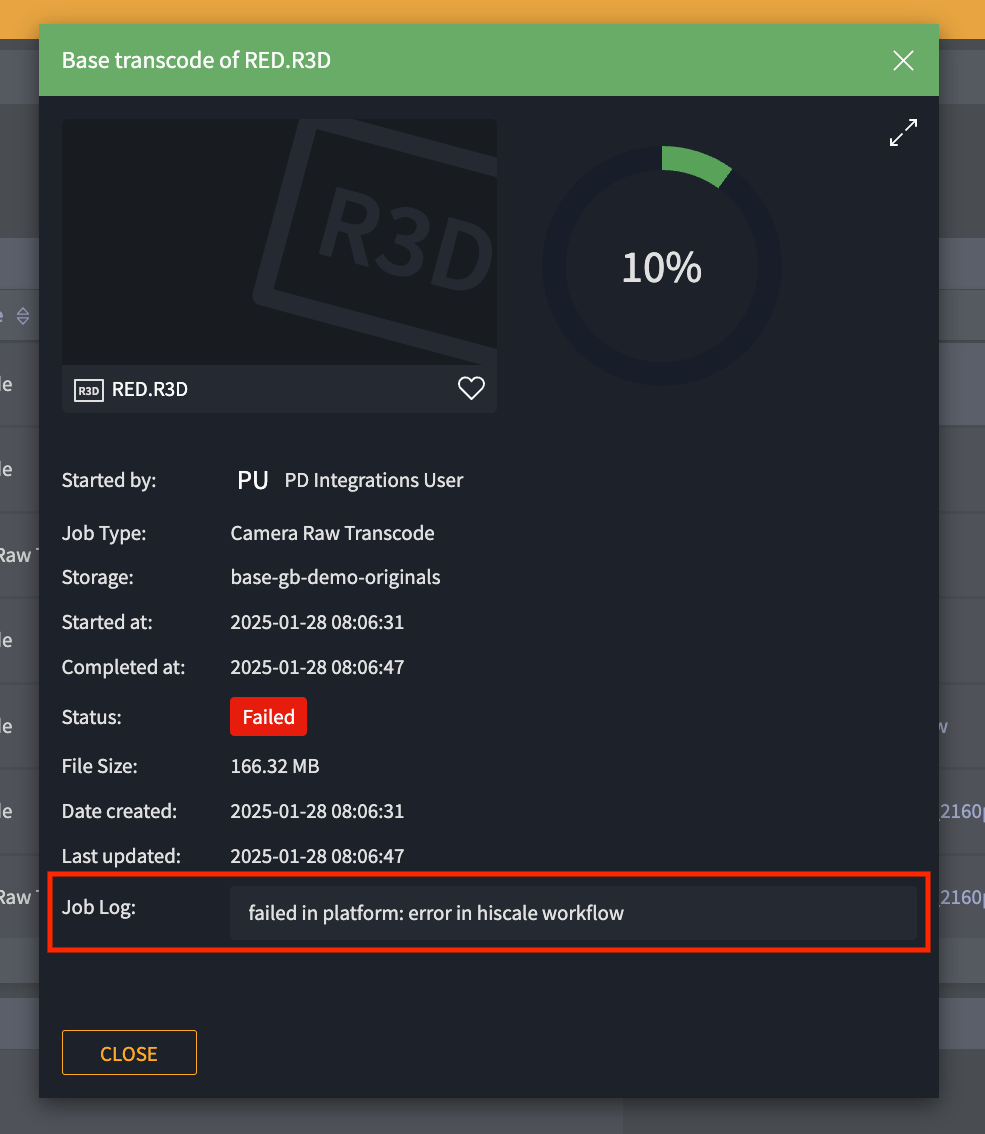

If a job fails, clicking on the job will show you the reason:
